Conquer it all

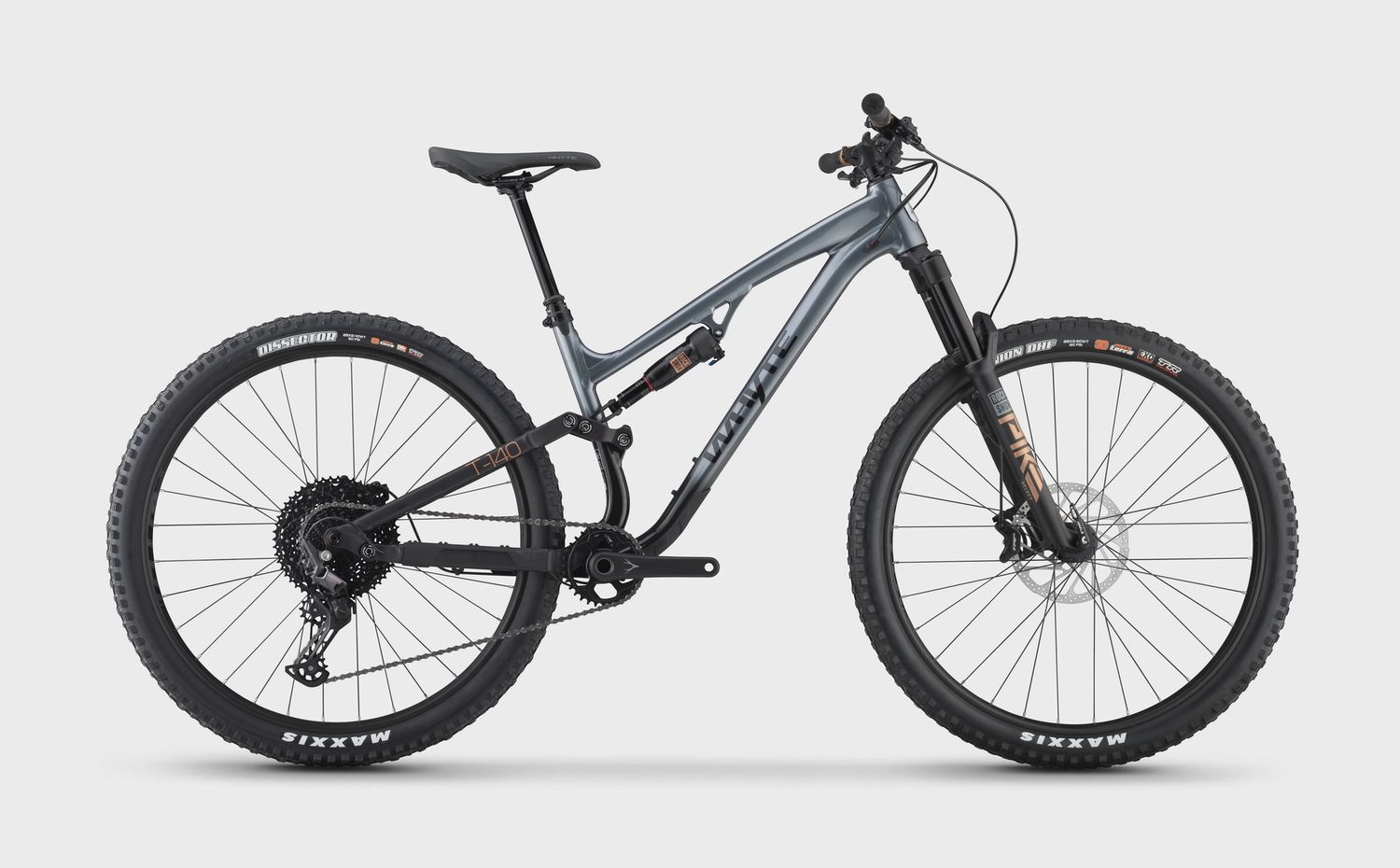

Our T-140 S is our best value, most versatile full-suspension bike to help you unlock every bit of fun from any trail. Whether you’re embarking on epic long rides, taming technical trails, or smashing singletrack at the trail centre, it's balanced and confidence-inspiring handling will help you conquer it all more capably – and more enjoyably – than ever before.
Highlights
– 140mm front and 135mm of rear suspension travel.
– 6061 aluminium SCR framet with ISCG 2 guide mounts + geometry adjustment.
– RockShox Pike Select 29in fork + Deluxe Select+ RT DebonAir shock.
– Shimano Deore 12 speed transmission (32T chainring x 11-51T Sunrace cassette).
– 29in trail-smoothing wheels front and rear.
– Can be converted to MX wheels (29er front, 27.5in rear) for a more gravity-focused ride.
Combining 140mm front travel with 135mm rear travel, the T-140 S delivers the perfect blend of impeccable rough terrain control and pedalling efficiency, wth a balanced ride that will have you attacking every trail with confidence and speed while still delivering that rush of involvement and reward. All combined so you can go further and faster, with the confidence to play hard, wherever the trail takes you.
The T-140 S's alloy frame is lightweight, tough, dependable and backed with a four-year frame warranty, lifetime bearing warranty and unique weather sealing features. Our switchable Shape.It link also means you can adjust the geometry from its stock high setting to low to slacken the head angle out by 0.7º and reduce the bottom bracket height by 8mm for a more aggressive, gravity-focused ride character.
29in wheels (aka ‘29er’) are the fastest, smoothest-rolling size for out-and-out speed and performance – whether you're riding far or riding for fun. Rolling on this larger wheel size and dressed with broad WTB tubeless rims and top-spec Maxxis tyres, the T-140 S makes light work of roots, rocks, and anything else the trail throws your way.
COLOUR | Gloss dark silver with matt black | CASSETTE | Sunrace CSMZ901, 11-51T, black |
---|---|---|---|
FRAME | 6061 alloy, Single Chainring (SCR) aluminium front triangle with tapered head tube, ISCG 2 guide mounts, alloy symmetrical SCR rear triangle, Shape.it Link and 148mm Boost dropouts | CHAIN | Shimano Deore M6100, 12 speed |
FORK | RockShox Pike Select 29in, 140mm travel, 44mm offset, DebonAir+, Charger RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle Ultimate | CRANKSET | Whyte Forged two-piece, Direct Mount alloy 32T Narrow Wide chainring, 170mm, Boost, 12 speed |
REAR SHOCK | RockShox Deluxe Select + RT, DebonAir, Fast Black coating, adjustable rebound and two position compression adjustment | BOTTOM BRACKET | BSA, cartridge bearings, 73mm |
HEADSET | FSA No. 57 Orbit ZS, ACB, 1 1/2in lower and 1 1/8in upper sealed cartridge bearings | SEATPOST | Whyte drop.it Post II Adjust, 30.9mm (size S 120-150mm; sizes M/L 140-170mm travel; size XL 170-200mm travel), remote lever |
REAR HUB | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole | SADDLE | Whyte Custom, dual density, triple panel design |
FRONT HUB | Alloy, double sealed cartridge bearings, 15mm x 110mm Boost spacing, 31mm torque caps, 32 hole | HANDLEBAR | Whyte 6061 Alloy, 31.8mm bar bore, 20mm (sizes S/M) or 30mm rise (sizes L/XL), 780mm wide |
SPOKES | DT Swiss New Champion 2.0mm, black stainless, brass nipples | STEM | Whyte Gravity, 35mm extension, 31.8mm bar bore |
RIMS | WTB ST i30 TCS 2.0 System, pinned joint, tubeless ready, 32 hole | GRIPS | Whyte Enduro lock-on |
TYRE | Maxxis Minion DHF TR 29in x 2.5in WT 60TPI, EXO Sidewall Protection, 3C Maxx Terra, front; Maxxis Dissector TR 29in x 2.4in WT 60TPI, EXO+ Sidewall Protection, 3C Maxx Terra, rear | BRAKES FRONT | TRP Slate Evo, four piston hydraulic with metal pads, 2.3mm thick 203mm diameter disc rotor |
SHIFT LEVERS | Shimano Deore M6100, I-Spec EV, 12 speed | BRAKES REAR | TRP Slate Evo, four piston hydraulic with metal pads, 2.3mm thick 180mm diameter disc rotor |
FRONT MECH | N/A | BRAKE LEVERS | TRP Slate Evo |
REAR MECH | Shimano Deore RD-M6100, Shadow Plus, 12 speed | PEDALS | Fibre reinforced composite platform |
WEIGHT | TBC |
