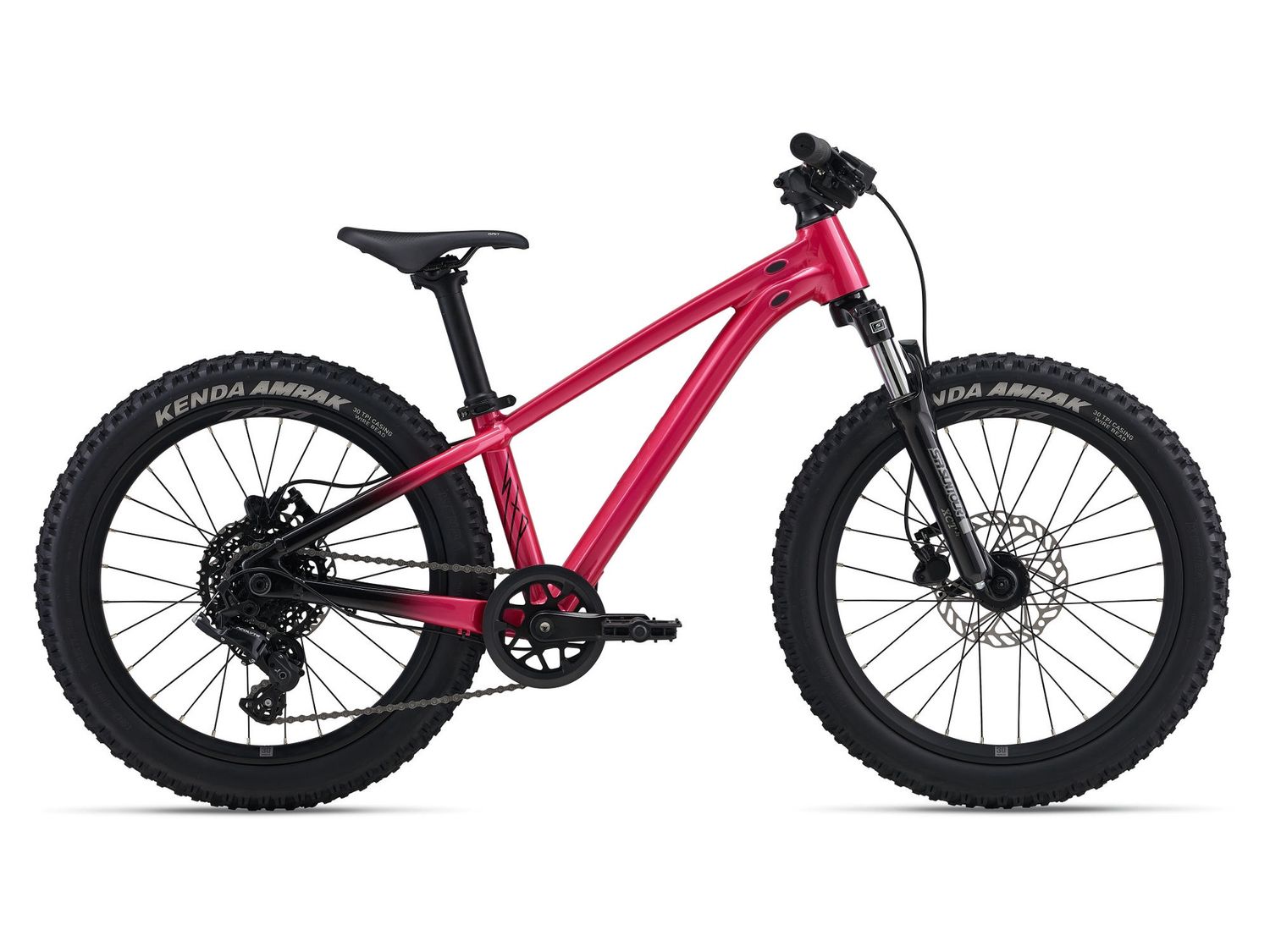

Liv STP 20 FS (2026)

Specifications

• Sizes
  OSFM
• Colours
  Hot Pink
• Frame
  ALUXX-grade aluminum, 12x142mm thru-axle
• Fork
  SR XCT Jr. L20, coil spring, 9x100 mm QR, 63 mm travel
• Shock
  N/A
• Handlebar
  Giant Sport, alloy, 31.8 mm, 600 mm
• Stem
  forged alloy, 0-degree
• Seatpost
  alloy, two-bolt, 30.9x260mm
• Saddle
  Liv Grit Core Lite
• Pedals
  platform
• Shifters
  MicroSHIFT Acolyte, 1x8, quick trigger shifter with small hand ergonomics and indicator with index thumb operation
• Front Derailleur
  N/A
• Rear Derailleur
  MicroSHIFT Acolyte, super short cage for increased ground clearance with spring lock
• Brakes
  Tektro HD-J2820 hydraulic [F]160 mm, [R]160 mm rotors
• Brake Levers
  Tektro HD-J2820
• Cassette
  Shimano CS-H083, 11x38
• Chain
  KMC X8.1
• Crankset
  ProWheel forged alloy, 30t, 105 mm
• Bottom Bracket
  threaded cartridge
• Rims
  Giant TRA 2, 20", alloy
• Hubs
  [F] Giant Tracker, QR, 6-bolt, [R] Giant Tracker, thru-axle, 6-bolt, HG driver body
• Spokes
  stainless, 14g
• Tyres
  Kenda Amrak, 20x2.2"
